SC APC Fixed Variable Fiber Optic Attenuator Strong Tensile Resistance For GPON Network

Brand Name : CLX

Model Number : Fiber Optic Attenuator

Certification : CE,ROHS

Place of Origin : Guangdong,China

MOQ : 10 Piece

Price : Negotiable

Payment Terms : T/T

Supply Ability : 10000 Piece/day

Delivery Time : 5-8 work days

Packaging Details : Blister box packing + carton packing

Type : Fixed Variable Attenuator

End face of polish : UPC/APC

Insertion loss : ≤0.3dB(1310nm &1550nm)

Return loss : ≤-40dB

Features : Metal ion doped fiber

Contact Now

Fiber Optic SC APC Fixed Variable Attenuator sc fibra optica attenuator For GPON Network

Model:SC / APC Optical Attenuator

Place of Origin:ShenZhen,China

Description

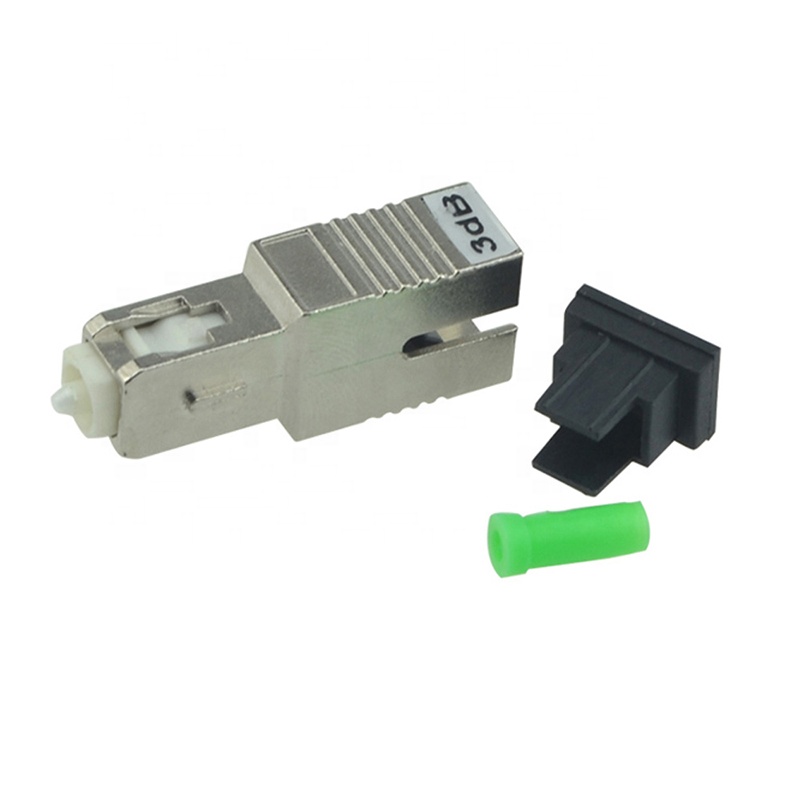

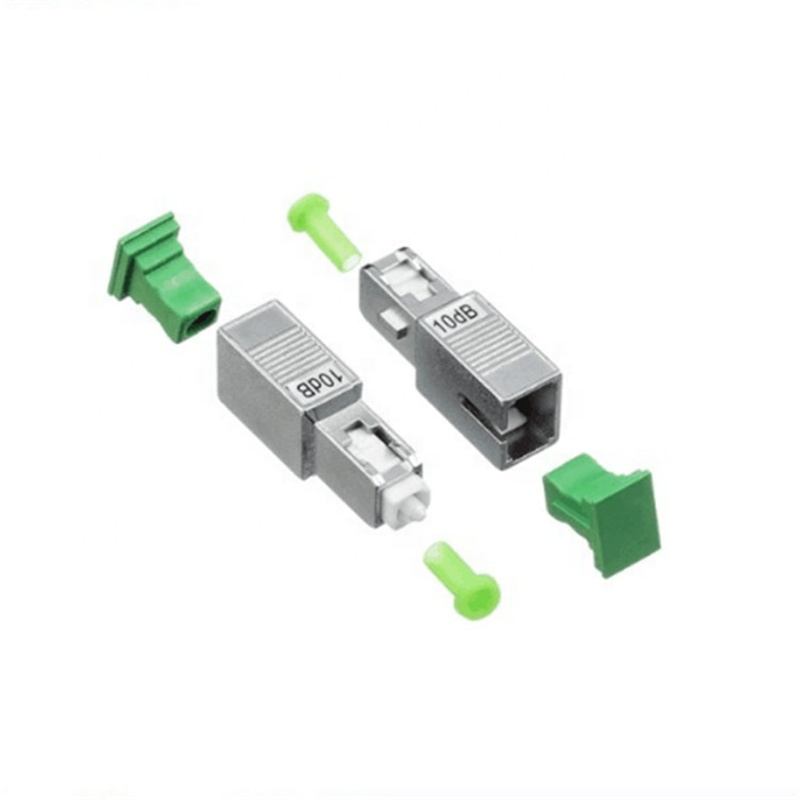

SC single mode fiber attenuators are commonly used in fiber optic communications to the the power level of a fiber cable by controlling the amount of signal loss that is passed through the signal. Commonly used attenuation range is from 1dB to 20dB.The most commonly used type is female to male plug type fiber optic attenuator, it has the optical fiber connector at one side and the other side is a female type fiber optic adapter, fiber optic attenuator name is based on the connector type and the attenuation level. SC Build Out Fiber Attenuators include SC/UPC fiber attenuators and SC/APC Female to Male Fiber Attenuators.

SC APC Fixed Variable Fiber Optic Attenuator Strong Tensile Resistance For GPON Network

Feature

Metal ion doped fiber
High-power light source durability
Wavelength independence
Attenuation levels ranging from 1dB to 25dB
1310nm, 1550nm and 1310/1550nm dual wave lengths

Applications

Erbium Doped Fiber Amplifiers (EDFA)
Dense Wave Division Multiplexers (DWDM)
Overpowered fiber optic systems

Specifications

Attenuation Value	1dB ~ 30dB
Operating Wavelength	1240 ~ 1620nm (Dual 1310/1550nm)
Return Loss	UPC >55dB
Return Loss	APC >65dB
Attenuation Accuracy	1 ~ 7 dB ±0.5dB
	8 ~ 12 dB ±0.7dB
	13 ~ 17 dB ±1.0dB
	18 ~ 25 dB ±1.3dB
Maximum Optical Input Power	1000mW
Polarization Dependent Loss	≤0.1dB
Operating Temperature Range	-40 to 75
Storage Temperature Range	-40 to 85
Humidity	95%RH

Ordering Information: AT-A-B-C-D-E-F-G

AT-	A	B	C	D	E	F	G
Attenuator	LP=LC/UPC	M=Male F=Female	LP=LC/UPC	M=Male F=Female	SM= Single Mode MM= Multi Mode	1dB ...... 9dB 10dB 15dB 20dB 25dB 30dB	31=1310nm 55=1550nm 85=850nm 30=1300nm
	LA=LC/APC		LA=LC/APC
	FP=FC/UPC		FP=FC/UPC
	FA=FC/APC		FA=FC/APC
	SP=SC/UPC		SP=SC/UPC
	SA=SC/APC		SA=SC/APC
	ST=ST/UPC		ST=ST/UPC
	MU=MU/UPC		MU=MU/UPC

For Example about full attenuator description : SC/UPC Single mode Female to male 3dB 1310/1550nm Build Out Fiber Optical Attenuator

Packing:
One piece per PE bag with stick label (we could add customer's logo in the label.)
